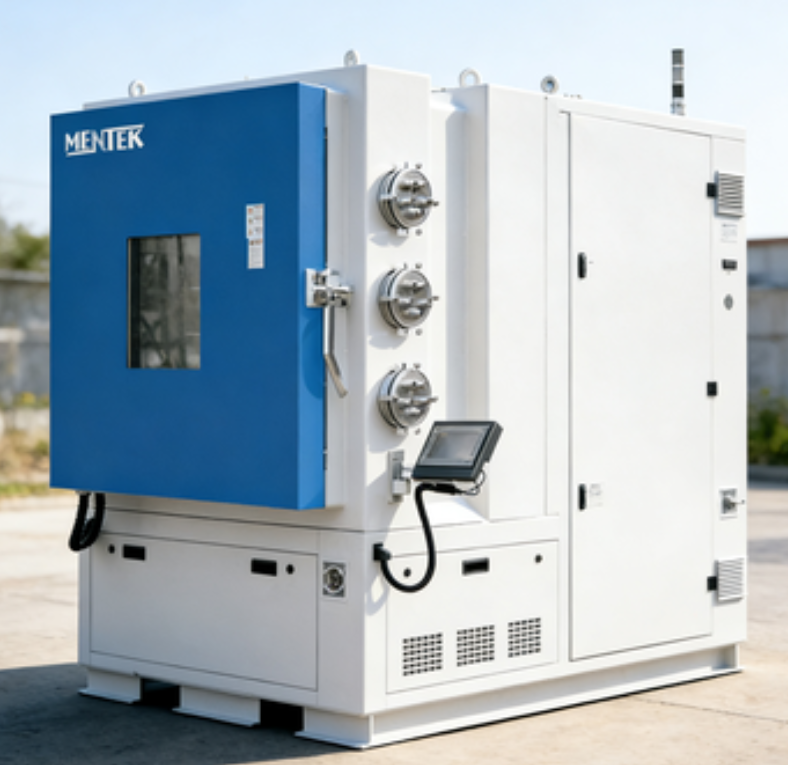

High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment

High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment

This low-pressure constant temperature vacuum test chamber adopts 12mm manganese steel alloy pressure-bearing shell and SUS304 stainless steel inner tank, supporting dual internal & external pressure loading up to 10 tons per square meter. Equipped with replaceable stainless steel flanges, aviation terminals and German vacuum pumps, it realizes leak-free vacuum testing under loaded conditions. Imported compressors and Japanese TFT touch controller deliver precise temperature & pressure control with tiny fluctuations, covering three volume models (100L/512L/1000L). It complies with GB/T and GJB national military testing standards and fully supports OEM customization.

High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
Description
Product Description
Product Features
1. A 12mm manganese steel alloy plate with a support framework is used as the external pressure-bearing material, and the pressure-bearing capacity can reach 10T per square meter.

2. A replaceable stainless steel flange interface with fast sealing technology is equipped with aviation terminals to achieve a vacuum leak-free test of the test specimen under load.

3. Advanced low-pressure constant temperature technology is adopted to ensure that the temperature remains constant with minimal fluctuations under any temperature conditions in a low-pressure state.
High Low Temperature Low-Pressure Test Chamber
High Low Temperature Low-Pressure Test Chamber

Main Parameters

Model MVT-100 MVT-500 MVT-1000
Temperature/pressure range Temperature: 20℃/40℃/70℃~+160℃
Air pressure: ~05kPa
Temperature control performance Temperature fluctuation: <±0.5℃ (ordinary pressure)
Temperature deviation: <±2.0℃ (ordinary pressure)
Temperature uniformity: ±2.0℃ (ordinary pressure)
Performance parameter Pressure deviation ≤±2kPa(≥40kPa); ≤±5%(2~40kPa); ≤0.1kPa(≤2kPa)
Heating and cooling rate The agreed temperature range and rate of temperature rise and fall can be adjusted from -7 to 1 ℃, or according to the agreement (normal pressure)
Voltage reduction time Reduce atmospheric pressure to 0.5kPa ≤ 30min (when dry inside the box)
Boost recovery rate ≤10kPa/min
Structure Pressure bearing method Internal and external pressure can be delivered, using high-quality 12mm thick manganese steel alloy plate as the external pressure box body. The overall pressure strength design capacity is greater than 10t/square, and it is resistant to high and low temperatures and not easily oxidized
Material of inner and outer boxes Outer wall material: double-sided galvanized steel plate, surface spray treated, inner wall reinforced to enhance the load-bearing support of the outer box. Inner wall material: stainless steel plate SUS304
Thermal insulation material The filling material is a vacuum specific composite pressure insulation material with strong pressure bearing capacity and high pressure resistance, which will not break
Cooling system Cooling method Single stage mechanical refrigeration/cascade two-stage compressor refrigeration method
Refrigerator French Taikang/German Bizelle imported compressors
Control system Controller Original Japanese imported 7-inch TFT touch screen controller
Communication interface USB RS232/RS485 etc
Heater Nickel chromium alloy electric wire heater
Other configurations Observation window 250mm high load vacuum glass
Vacuum system German Ley-bold direct air-cooled single-stage oil sealed rotary vane vacuum pump
Temperature sensor Pt100
Pressure sensor Swiss HUB sensor
Inner size width(cm) 50 80 100
height(cm) 50 80 100
depth(cm) 40 80 100
Effective volume 100L 512L 1000L
Power AC380V 50Hz Three phase four wire system+grounding wire
Standard configuration 1 product manual, 1 factory inspection report, 1 certificate of conformity and quality assurance certificate, 2 test brackets, and testing interfaces as agreed
Meet the testing standards GB/T2423series GB/T5170series GJBl50Aseries GJB360A/B GB/T10589 GB/T11158 GB/T11159

Note: Support customization

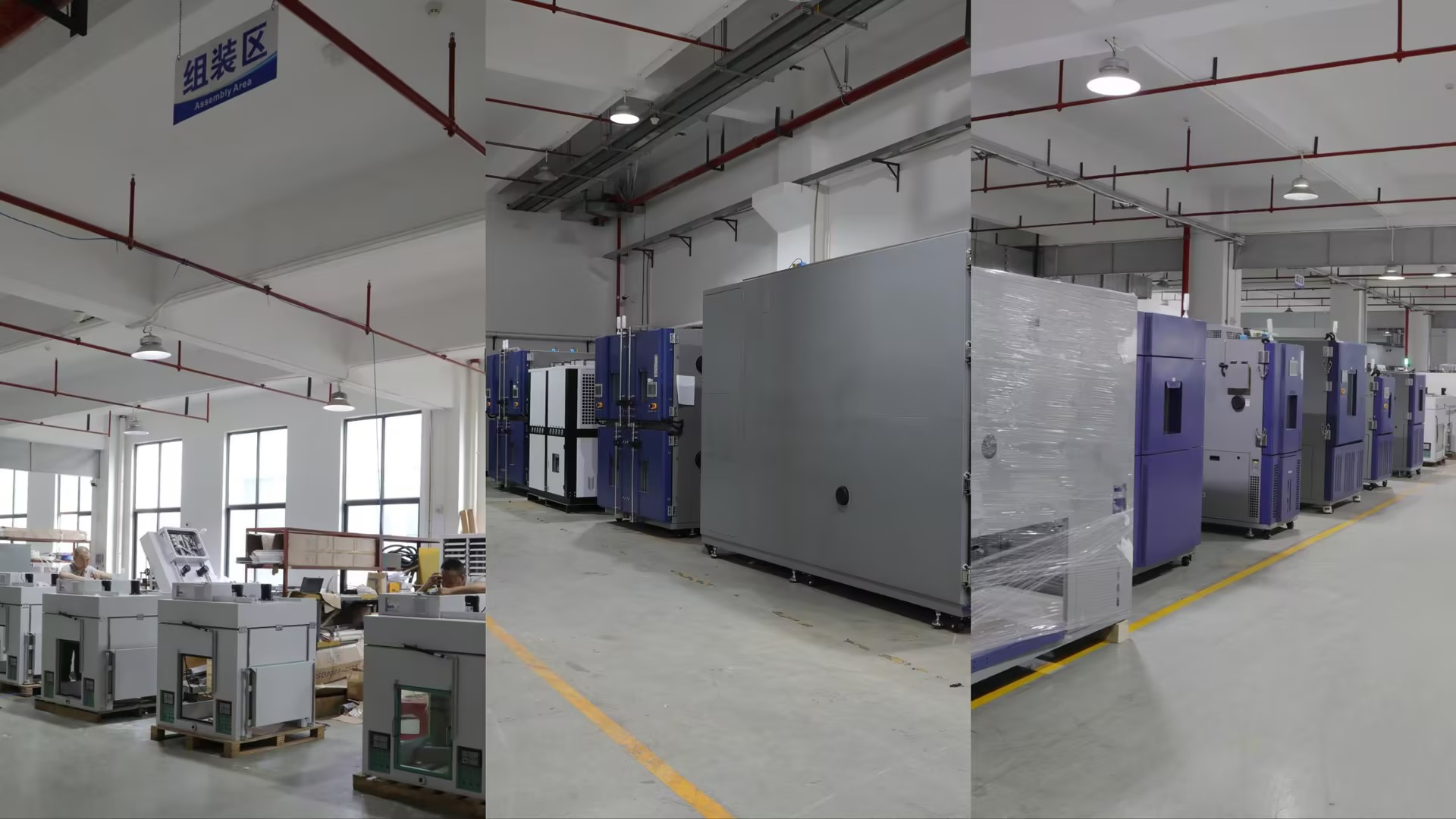

Company Profile
