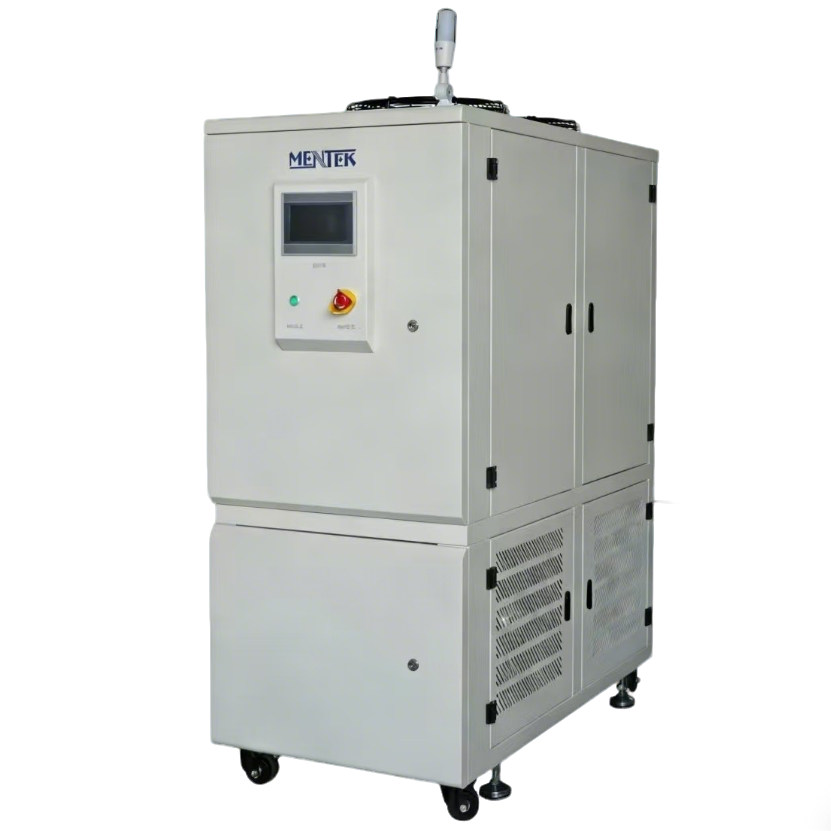

Direct-Cooling Test Chiller

Direct-Cooling Test Chiller

The MRC direct-cooling test chiller integrates direct cooling and direct heating functions, meeting the testing requirements of batteries under various working conditions.It supports direct cooling testing for power battery dual cold plates/dual systems, simulates the working conditions of the vehicle's direct cooling and heating system, and provides technical conditions for testing.

Direct-Cooling Test Chiller
Description
Product Description
Product Features
1. The MRC direct-cooling test chiller integrates direct cooling and direct heating functions, meeting the testing requirements of batteries under various working conditions.

2. It supports direct cooling testing for power battery dual cold plates/dual systems, simulates the working conditions of the vehicle's direct cooling and heating system, and provides technical conditions for testing.

3. Equipped with built-in refrigerant mass flow display, it can realize superheat/supercooling degree adjustment and evaporation pressure adjustment, with remote communication function supporting RS485, CAN, CANFD and other communication protocols.

4. Adopting Freon direct cooling without coolant circulation, the equipment features energy efficiency, high efficiency and high reliability.

Main Parameters

Model MRC-5 MRC-10 MRC-20
Cooling Capacity 5KW 10KW 20KW
Heating Capacity 5KW 10KW 20KW
Superheat Degree 3±2°C 3±2°C 3±2°C
Subcooling Degree 5±3°C 5±3°C 5±3°C
Power Supply Requirement 380V/50Hz
Curve Display Pressure and Temperature
Data Storage 30 Days of Operating Data
Data Export Support USB2.0/3.0 Export
Communication Standard: RS485 / LAN    Optional: CAN

Note: Support customization
