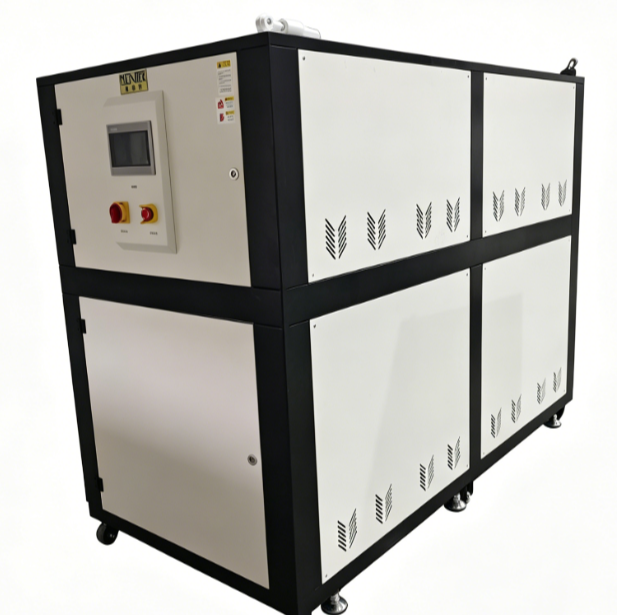

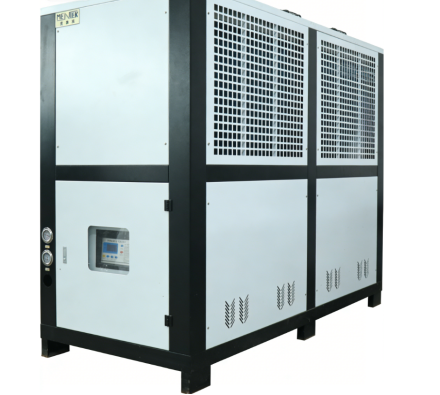

Air-cooled industrial chillers deliver stable, constant-temperature cooling water for various manufacturing equipment. They feature easy installation, high efficiency, low noise, and complete safety protections. Widely used in plastics, electronics, food, printing and other industries, they ensure reliable production and precise temperature control.
Main Parameters
| Model | MWC-0.5A | MWC-1A | MWC-2A | MWC-3A | MWC-5A | MWC-10A | MWC-12A | MWC-15A | MWC-20A | MWC-25A | MWC-30A | MWC-40A | MWC-50A | MWC-60A | |
| Cooling Capacity (KW) | 1.6 | 2.8 | 5.6 | 8.35 | 13.94 | 28.5 | 33.8 | 44.5 | 58.1 | 68 | 86 | 114 | 138 | 138 | |
| Input Power (KW) | 1 | 1.39 | 2.3 | 3.6 | 5.4 | 11 | 13 | 17 | 21 | 25.5 | 33.8 | 43.8 | 56.5 | 66.8 | |
| Power Supply | 220/380V | 380V 3PH | |||||||||||||
| Refrigerant | R22/R407C/R134A/R404A/R410A | ||||||||||||||
| Control Method | Capillary / Thermostatic Expansion Valve | ||||||||||||||
| Compressor Qty. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Chilled Water Flow (m³/h) | 0.28 | 0.49 | 0.97 | 1.72 | 2.4 | 4.8 | 5.8 | 7.6 | 10 | 11.5 | 15 | 19.5 | 23 | 29 | |
| Tank Volume (L) | 10 | 18 | 27 | 50 | 60 | 200 | 200 | 200 | 350 | 350 | 450 | 580 | 620 | 620 | |
| Water Port Size | 1/2" | 1/2" | 1/2" | 1" | 1" | 1-1/2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | |
| Pump Power (KW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | |
| Protection System | Overheat, Overcurrent, High/Low Pressure, Over-temperature, Phase Sequence, Low Level, Anti-freeze | ||||||||||||||
Note: Cooling capacity tested at chilled water 12℃/7℃, ambient air 30℃/35℃.
Customization is available.

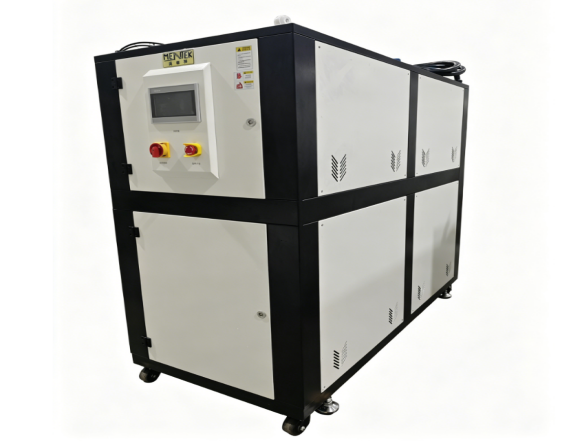

Water-cooled industrial chillers provide stable low-temperature cooling water for various industrial equipment. With high cooling efficiency, intelligent control and complete safety protection, they are widely used in manufacturing to ensure stable production and precise temperature control.
MLC series high-low temperature test chillers are mainly used for precise temperature control in the production and testing of inverters, water-cooled controllers, semiconductor IGBT water-cooled modules, battery packs, etc.
The MRC direct-cooling test chiller integrates direct cooling and direct heating functions, meeting the testing requirements of batteries under various working conditions.It supports direct cooling testing for power battery dual cold plates/dual systems, simulates the working conditions of the vehicle's direct cooling and heating system, and provides technical conditions for testing.
Designed for precision temperature control in demanding environments, this high-performance chiller ensures energy-efficient operation, robust durability, and compliance with environmental testing standards. Ideal for laboratories, manufacturing, and research facilities requiring reliable cooling solutions with data-driven accuracy.
