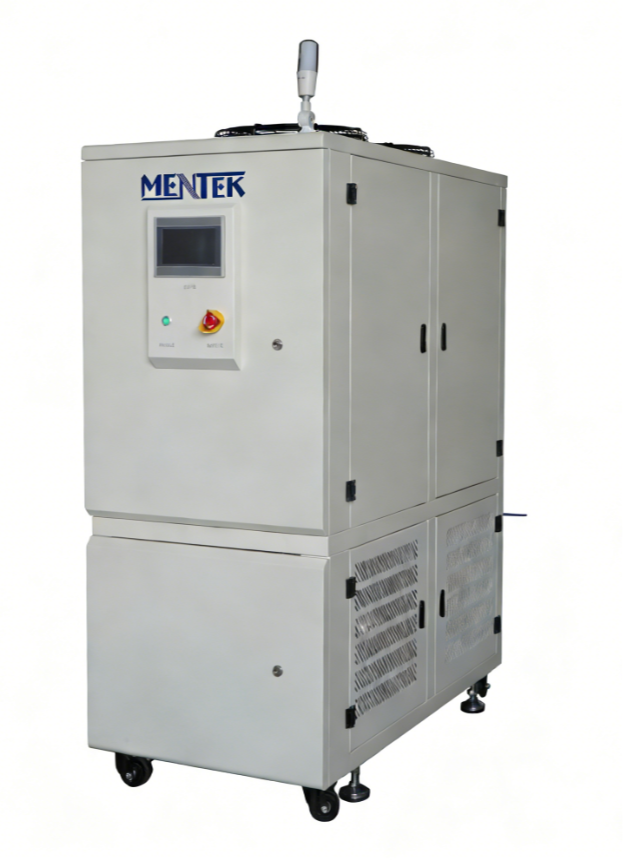

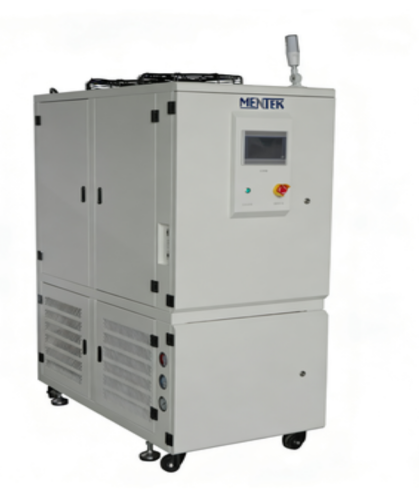

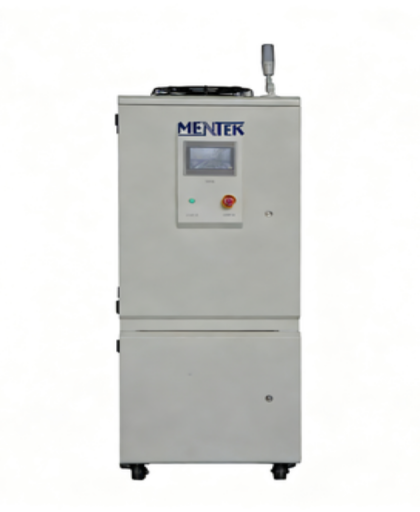

High-low Temperature Testing Chiller

MLC series high-low temperature test chillers are mainly used for precise temperature control in the production and testing of inverters, water-cooled controllers, semiconductor IGBT water-cooled modules, battery packs, etc.

contact

Description

Product Description

Product Features
1. MLC series high-low temperature test chillers are mainly used for precise temperature control in the production and testing of inverters, water-cooled controllers, semiconductor IGBT water-cooled modules, battery packs, etc.

2. Adopts a variety of algorithms (PID, feedforward PID, model-free self-building tree algorithm) to achieve fast system response and high control accuracy.

3. Based on vapor compression refrigeration cycle, using special coolant instead of ordinary chilled water with higher heat exchange efficiency.

4. Supports direct/indirect liquid cooling, suitable for high heat flux density scenarios above 800W/㎡, widely used in energy storage cabinets, high-power testing equipment, industrial servers, etc.

5. Supports 30 programmable programs with 40 steps each, stores 30 days of operating data, and enables data export via USB2.0/3.0.

Main Parameters

Model	MLC-5	MLC-7.5	MLC-10	MLC-15	MLC-20	MLC-30
Flow Range	1-15L/min	1-25L/min	1-25L/min	2-40L/min	2-40L/min	2-50L/min
Temperature Range	-40°C~100°C (extendable to 150°C)
Temperature Control Accuracy	±0.5°C
Temperature Display	0.1°C
Cooling Medium	Ethylene glycol antifreeze, freezing point below -45°C
Flow Control Accuracy	±0.2L/min
Pressure Control Accuracy	±5kPa
Pressure Display	0-300kPa (customizable)
Heating Power	5KW	6KW	10.5KW	10.5KW	15KW	15KW
Cooling Capacity @25°C	5KW	7.5KW	10KW	15KW	20KW	30KW
Cooling Capacity @0°C	5KW	7.5KW	10KW	15KW	20KW	30KW
Cooling Capacity @-20°C	2KW	3KW	4KW	5KW	7KW	8KW
Cooling Capacity @-30°C	1KW	2KW	3KW	4KW	5KW	6KW
Cooling Capacity @-40°C	/	1KW	1KW	1.5KW	2KW	3KW
Average Cooling Rate (No Load)	4°C/min	4°C/min	4°C/min	5°C/min	5°C/min	6°C/min
Average Heating Rate (No Load)	4°C/min	4°C/min	5°C/min	5°C/min	6°C/min	7°C/min
Chilled Water Port	DN15	DN20	DN25	DN25	DN25	DN25
Cooling Type	Air/Water	Air/Water	Air/Water	Air/Water	Water	Water
Power Supply	380V/50Hz
Curve Display	Supply/return pressure, temperature & flow
Program Operation	30 programs, 40 steps per program
Data Storage	30 days of operating data
Data Export	Support USB2.0/3.0
Communication	Standard: RS485/LAN Optional: CAN
Options	Auto fluid filling, auto/manual purging, pressure holding

Note: Support customization

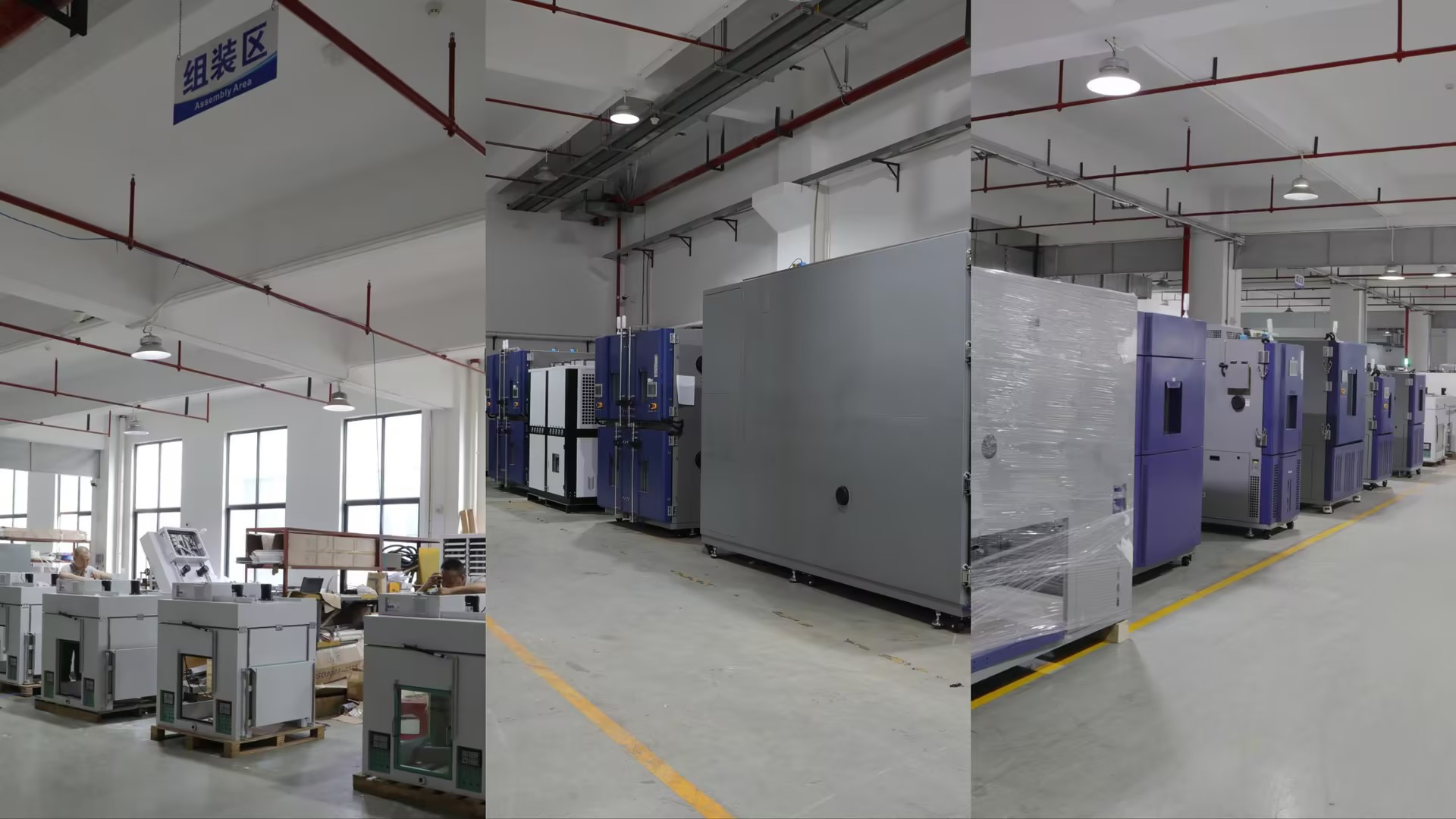

Company Profile
